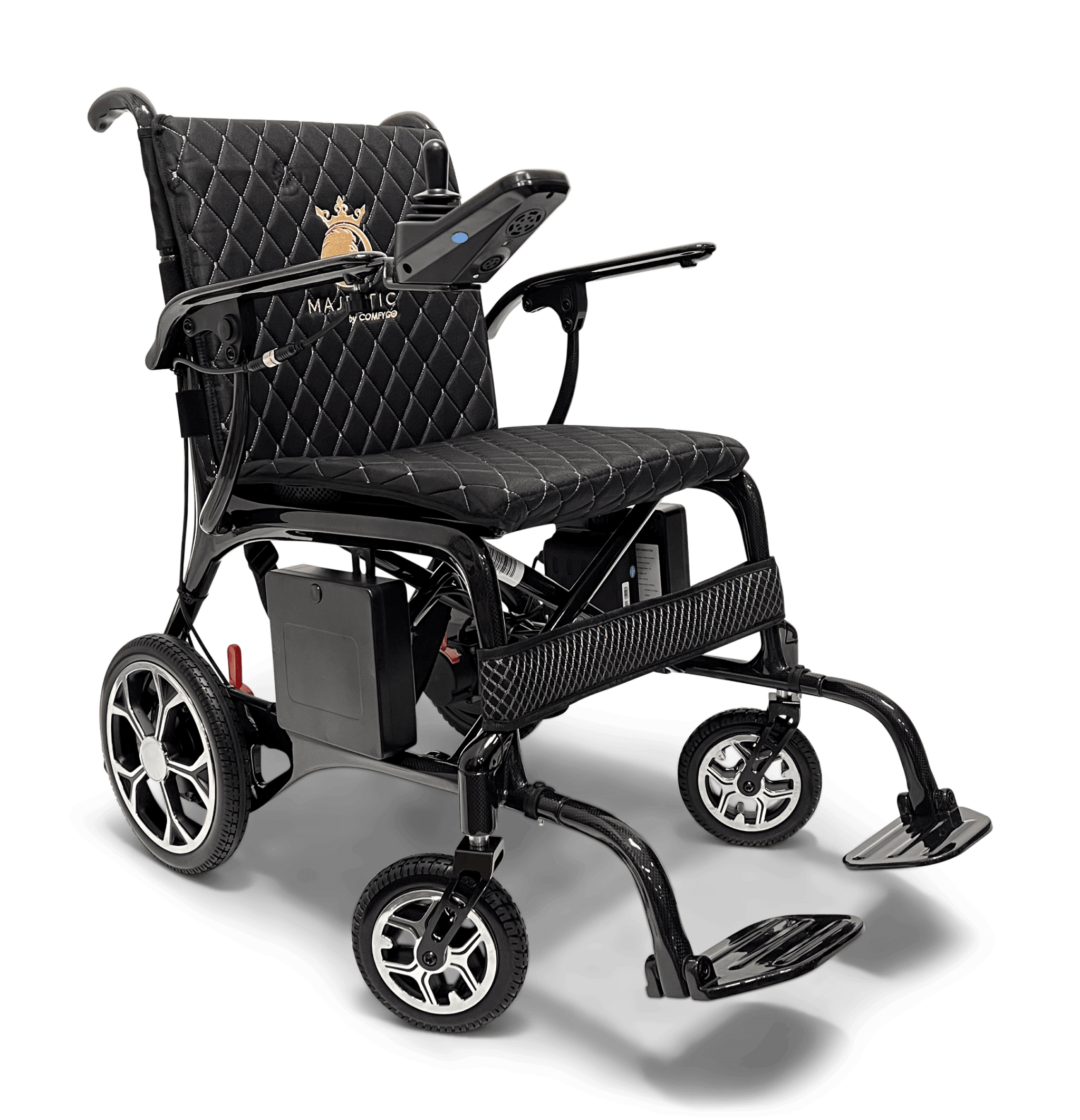

Introducing the Phoenix Carbon Fiber Electric Wheelchair, a groundbreaking foldable electric wheelchair tailored for the discerning traveler. Constructed from top-tier carbon fiber materials and equipped with robust motors, this wheelchair guarantees a seamless and dependable journey.
⚖️ Featherweight Design: With its net weight beginning at just 26 lbs (main frame only), the Phoenix ensures hassle-free transportation and storage, making it an ideal travel companion.
💪 Dominant Drive: Powered by two 250W brushless motors, the Phoenix provides a smooth and potent drive, ready to tackle diverse terrains. Navigate with confidence using the integrated joystick controller, ensuring precision and user-friendliness.
🔋 Adaptable Battery Choices: Benefit from dual 24V*6.6AH lithium-ion batteries for extended journeys, ensuring you’re always ready for longer adventures.
🚀 Unwavering Quality: The Phoenix Carbon Fiber Wheelchair is a symbol of durability.
| Phoenix Specifications |
| Seat Area Width (inches / mm) |
18.5″ / 470 mm |
| Cushion Width & Depth (inches / mm) |
Width: 17″ / 430 mm, Deepth: 16″ / 405 mm |
| Seat Height – from ground (inches / mm) |
18″ / 500 mm |
| Armrest Height (inches / mm) |
8″ / 204 mm |
| Backrest Height (inches / mm) |
16″ / 406 mm |
| Max Loading Weight ( lbs / kg) |
240″ / 110 mm |
| Overall Product Length (Inches / mm) |
35″ / 900 mm |
| Overall Product Width (Inches / mm) |
22.5″ / 580 mm |
| Overall Product Height (Inches / mm) |
34 / 860 |
| Folded Product Length (Inches / mm) |
33 / 840 |
| Folded Product Width (Inches / mm) |
8.5 / 216 |
| Folded Product Height (Inches / mm) |
27 / 286 |
| Net Weight without battery (lbs / kg), (Only Main Frame) |
26 lbs / 11.8 kg |
| Net Weight without Battery (lbs / kg) |
29 lbs / 13 kg |
| Net Weight with dual Battery (lbs / kg) |
35 lbs / 15.5 kg |
| Each Battery Weight (lbs / kg) |
3 lbs / 1.3 kg |
| Battery Unit |
2 battery (dual battery) |
| Battery Charge |
AC 100-240V, 50Hz,1.5-5A |
| Battery Charge Time (hours) |
4 to 8 hours |
| Battery Type |
Lithium Ion |
| Each Battery Capacity (AH) (comes with 2 battery) |
24V * 6.6AH |
| Total Battery Capacity (AH) |
24V * 13.2 AH |
| Airline Approved |
Yes |
| Range* (miles / km) |
Up to 15.5 mile / 25 km |
| Max Speed (mph / kph) |
4 mph / 6 kmh |
| Front Wheel Diameter (inches / mm) |
6″ / 152 mm |
| Rear Wheel Diameter (inches / mm) |
10″ / 254 mm |
| Turning Radius (inches / mm) |
35.5″ / 900 mm |
| Motor Type |
Brushless |
| Motor Unit |
2 |
| Each Motor Power (W) |
250 |
| Total Motor Power (W) |
500 |
| Motor Torque |
1.1 Nm |
| Max Slope |
6 degrees |
| Folding |
Manual |
| Raisable Armrests |
Yes |
| Solid Tire |
Yes |
| Frame Color |
Black |
| Packaging Product Length (Inches / mm) |
25 / 635 |
| Packaging Product Width (Inches / mm) |
17 / 432 |
| Packaging Product Height (Inches / mm) |
33 / 838 |
| Packaging Weight (lbs / kg) |
71.5 / 32.5 |
| WHAT’S IN THE BOX |
Wheelchair / 2 * 6.6AH Battery / Joystick (Controller) / Charger / Anti-tip bars / User Manual (Includes Warranty Details) |
Battery and Charger
- The ComfyGO Mobility Phoenix Carbon Fiber Foldable Electric Wheelchair comes equipped with two standard 6.6AH lithium-ion batteries featuring a quick-release function, making them easily removable for travel or charging purposes.
- These batteries are airline and cruise approved, allowing for seamless travel experiences.
- The charging time for each battery is 6 to 8 hours.
- The Phoenix battery can be charged with a regular home outlet.
- Designed for user convenience, the batteries can work simultaneously and be charged either while installed in the wheelchair or independently, ensuring uninterrupted mobility and ease of use.
- The charging details for each battery are AC 100 – 240 Volt, 50 Hertz, at 1.5 – 5 amperes.
- The Phoenix comes with a standard 24V 2A charger in the box.
Range
- Two 24V 6.6AH batteries provide an impressive driving range of up to 15.5 miles.
- However, it is important to note that driving habits, temperature, weather, loading weight, road conditions, and other factors may affect the overall range.
Travel Friendly
- The Phoenix is a lightweight foldable travel wheelchair. The 6.6AH (158.4WH) lithium-ion batteries are travel approved by most major airlines and cruise lines. Before travelling by airline or cruise, please contact the airline or cruise line to confirm their travel battery regulations.
Maintenance
- The Phoenix does not require much maintenance. Monthly cleaning, inspecting, and tightening of bolts and nuts should keep your wheelchair in good working order. Proper charging of the lithium-ion battery will prolong your battery life.
Controller (Joystick)
- This state-of-the-art wheelchair features a digital joystick controller with an LCD display for effortless navigation, alongside automatic reclining capabilities for maximum comfort during your journey. The quick-release function on the controller always ensures seamless operation.
- The controller contains the power on/off button, the speed selection buttons, the horn button, the battery level display, and the 360-degree joystick controller.
Cushion & Backrest
- Experience added comfort and easy maintenance with the leather cushion and backrest of our electric wheelchair.
- The Phoenix carbon fiber lightweight electric wheelchair is designed for maximum comfort. For additional comfort and easy maintenance, you can also choose to add a upgraded cushion and backrest, which are easy to clean.
Remote Controller
- The phoenix comes with an optional remote controller. The remote control allows you to maneuver the chair, adjust the speed, honk the horn, and recline the chair (if applicable). The remote control works at distances up 30 feet.
Intelligent Electromagnetic Brakes
- Enjoy a safe and smooth ride with our electric wheelchair featuring intelligent electromagnetic brakes built into the motors.
- Intelligent Electromagnetic Brakes provide several benefits for wheelchairs, including improved safety, smoother braking, and reduced wear and tear on the wheelchair’s components. Unlike traditional braking systems, electromagnetic brakes are highly responsive and can be controlled with precision, allowing for a safer and more comfortable ride. They also require less maintenance and have a longer lifespan compared to other braking systems.
- Additionally, electromagnetic brakes can help prevent the wheelchair from rolling away when parked on a slope or incline, providing greater peace of mind for the user.
Accessories
- The phoenix has optional accessories available including a headlight with USB charger, phone holder. Please click here https://www.comfygomobility.com/collections/accessories for more information on accessories.
Speed
- The Phoenix has seven speed selections and a limited top speed of 4 mph. The seven speed selections will deliver 15%, 30%, 45%, 60%, 75%, 90% or 100% of the maximum speed with speed one being 15% of maximum speed and speed five being 100% of maximum speed.
Seating Area Width
- The Phoenix is available 18.5″ seating option. The seat width is measured at the broadest point between the bars supporting the armrests.
- The phoenix offers unrivaled comfort, featuring a 17″ cushion width and 16″ cushion deepth.
Frame
- Experience maximum durability and strength with the Phoenix series of electric wheelchair, which features a carbon fiber frame.
- This high-quality material offers superior toughness and corrosion resistance, ensuring that your electric wheelchair can withstand the rigors of daily use and provide long-lasting performance.
Weight of the Chair
- The main frame of the Phoenix Carbon Fiber Wheelchair weighs 26 lbs, making it the heaviest component of the wheelchair.
- The cushion, backrest, footrests, and controller together add a total of 3 lbs. Thus, the Phoenix weighs 29 lbs without the battery.
- Each 6.6AH battery adds 3 lbs to the weight. Therefore, the total weight of the Phoenix carbon fiber wheelchair with the battery is 35 lbs.
Loading Weight
- The Phoenix carbon fiber wheelchair supports a maximum weight of 240 lbs.
Wiring/Electronics
- The Phoenix wiring, connectors, processor, motors, and controller are weather resistant and are able to resist light rain and winds. It is important to understand that none of the electronics are weather or waterproof and should avoid heavy rains or submersion in water.
Tires
- The Phoenix features solid tires, with 10″ rear tires and 6″ solid front tires.
Anti-Tip Wheels
- For added stability and safety, the phoenix wheelchair is equipped with anti-tip wheels. These bars are designed to prevent the wheelchair from tipping over and provide extra support when navigating over uneven terrain or inclines. With this advanced feature, users can enjoy a more secure and worry-free ride, knowing that their electric wheelchair is equipped with additional safety measures.
Warranty
- The phoenix comes with a standard 1-year frame, 1-year motor, 1-year battery, and 1-year electronic parts warranty.
- An optional ComfyGO Care warranty can be purchased to provide up to 2 years of coverage for batteries and electronics. An optional ComfyGO Care+ warranty can be purchased to provide up to 3 years of coverage for batteries and electronics. ComfyGO Care and ComfyGO Care+ can be purchased within 90 days of your delivery date.
What is in the box?
- The Phoenix wheelchair comes with two lithium-ion batteries, joystick (controller), optional remote controller, battery charger, anti-tip wheels, and the user manual.
