PL350CT – Car Transfer Mobile Floor Lift

Description

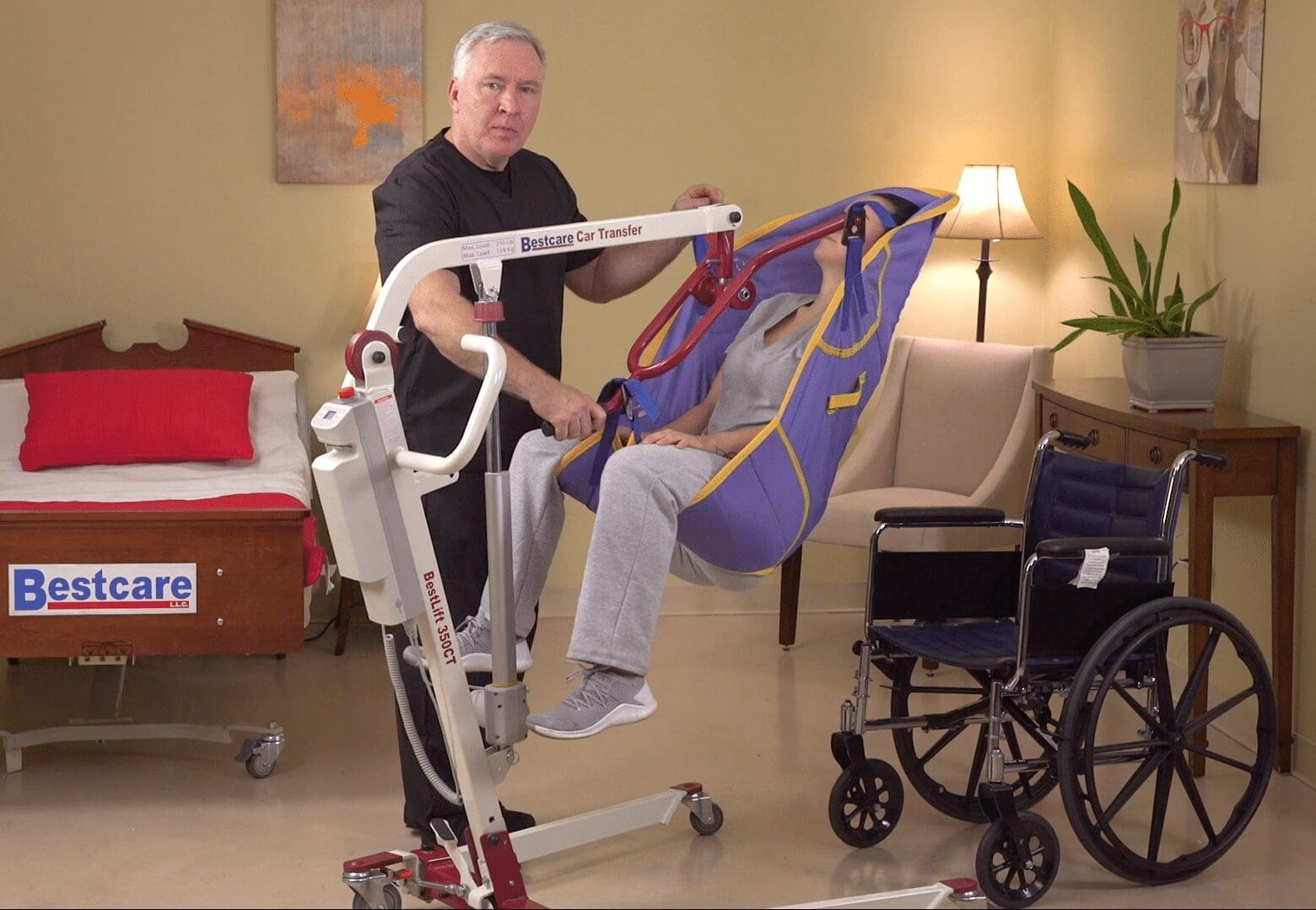

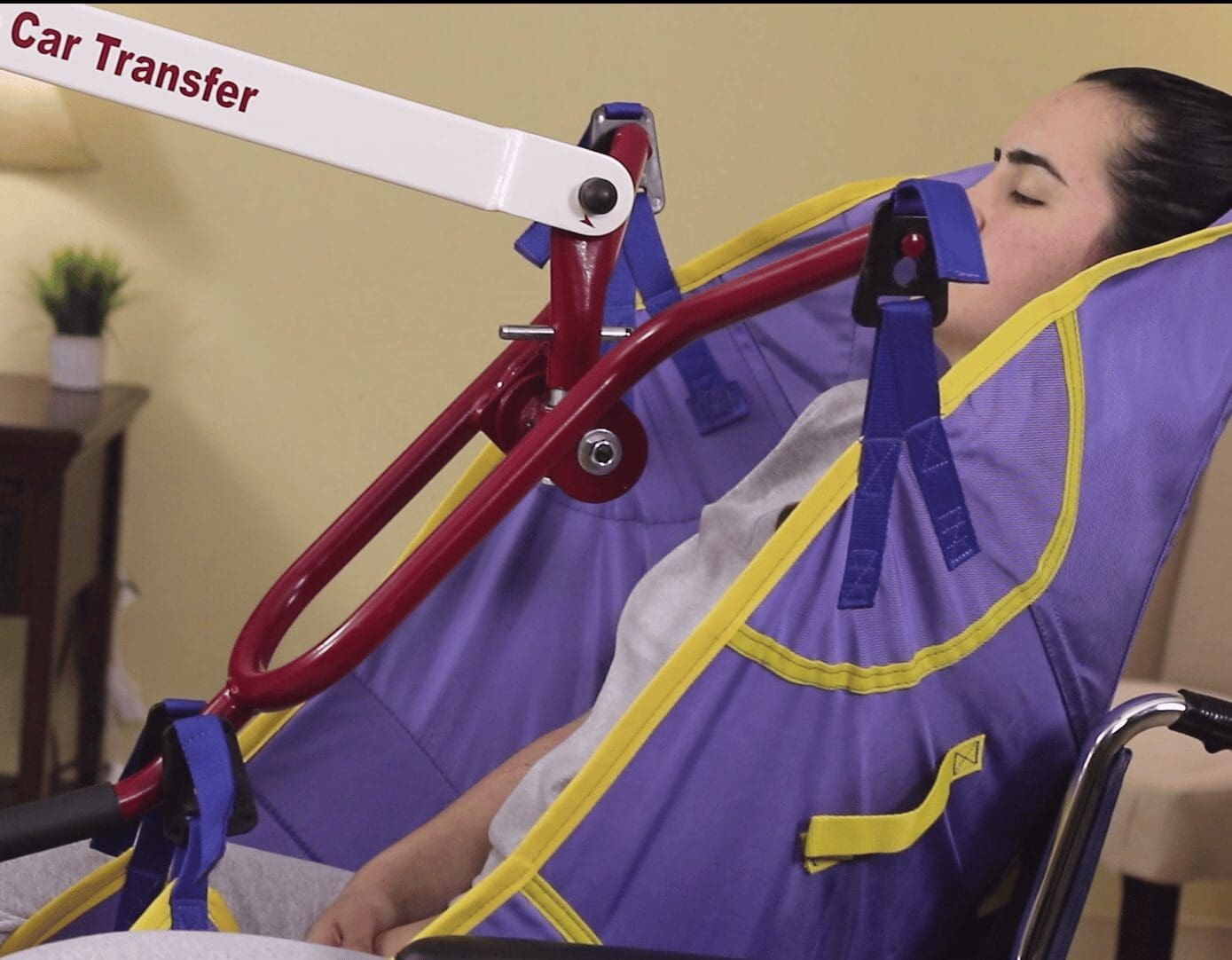

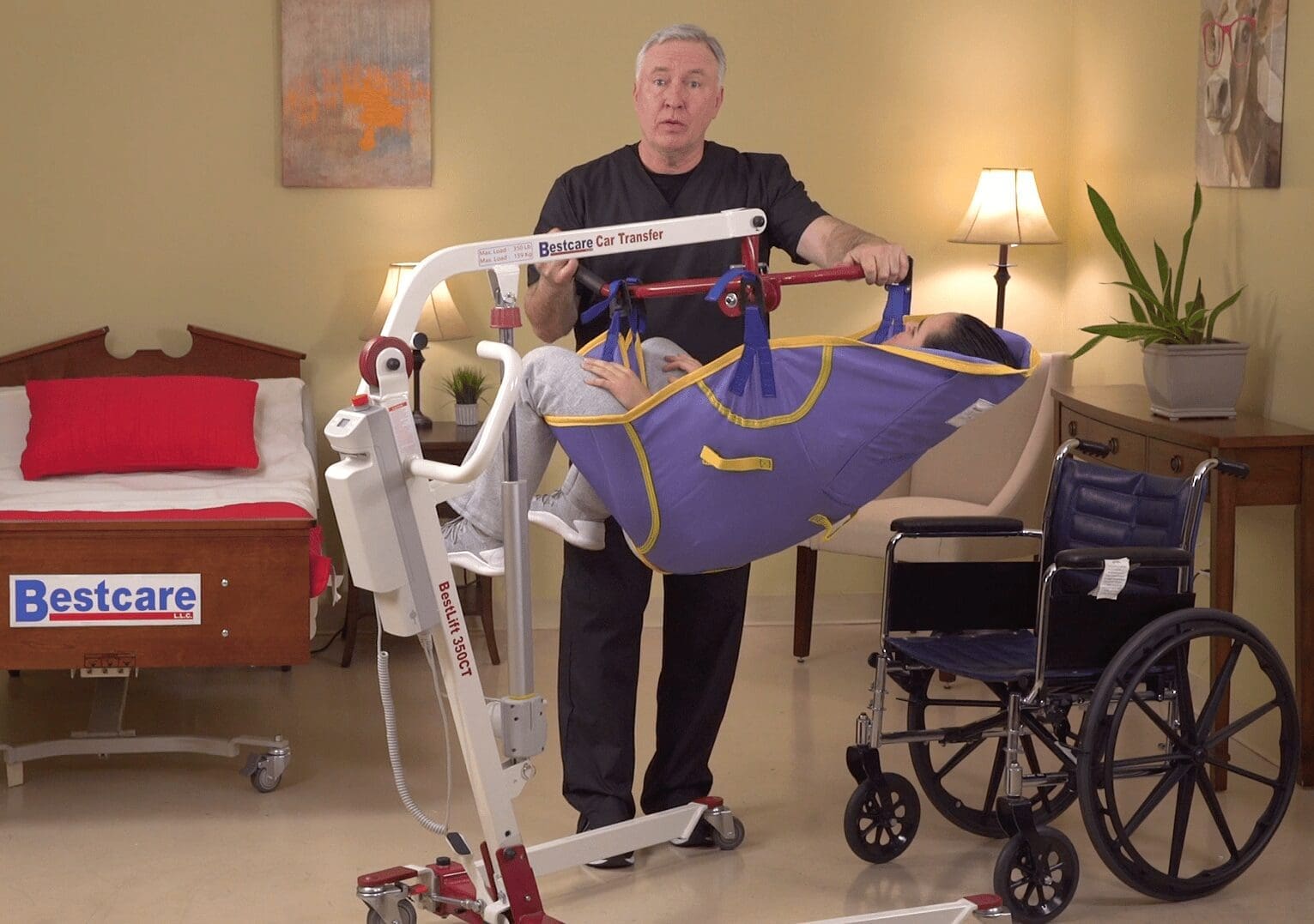

The BestLift PL350CT is the perfect solution for car transfers and your everyday transfer needs. With its unique spreader bar and the Cardle Clip Sling, this BestLift is able to position patients from sitting to a lying down position with minimal patient movement. It also transfer them from the car, wheelchair, floor or bed and adds versatility by folding up for easy transportation.

Main Features:

• 350lb capacity
• Smaller and lighter

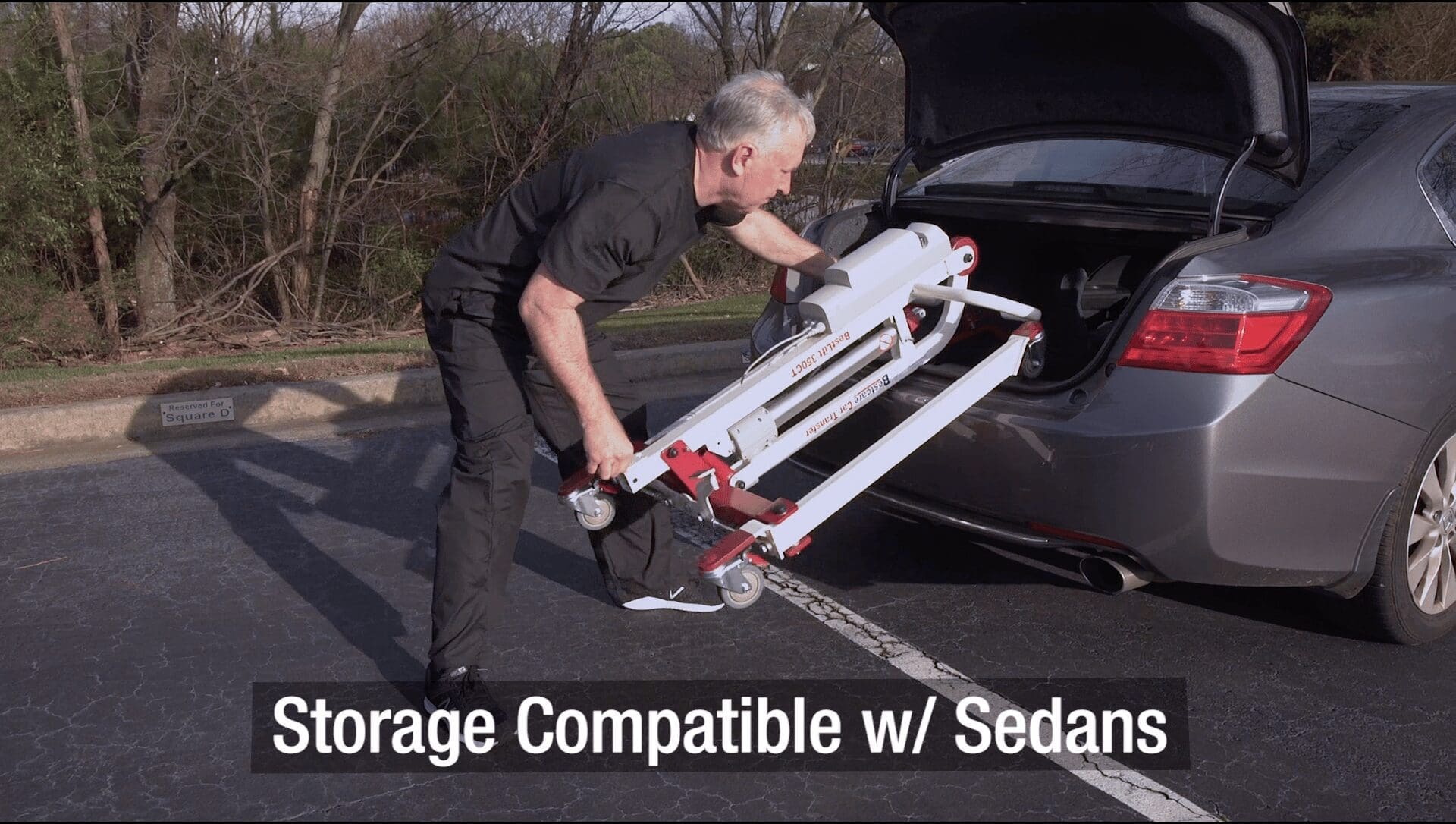

• Fits to car trunk

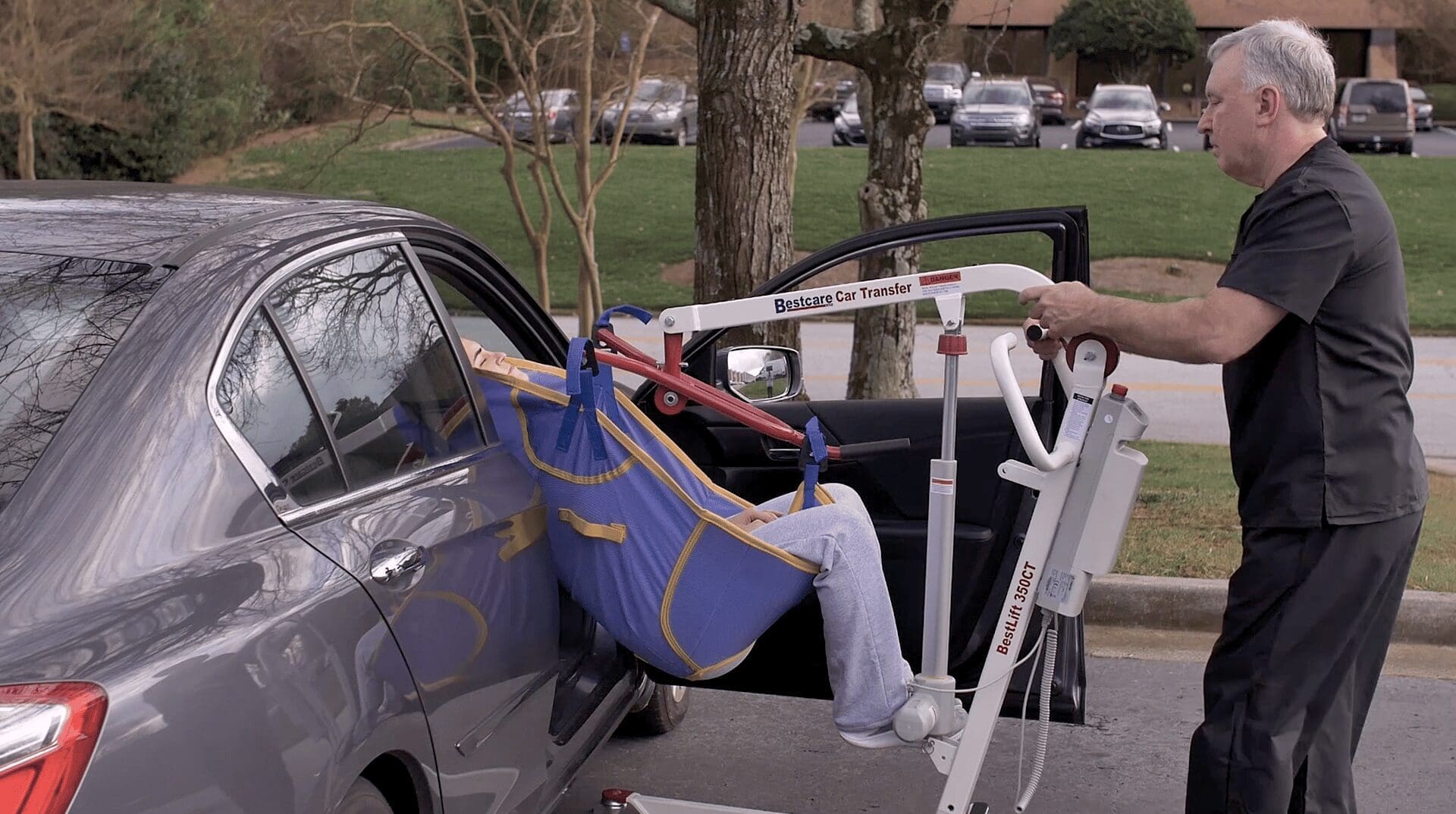

• Easy car transfer
• Minimal swinging of patient
• Foldable and portable for easy transport
• Compatible with most plastic clip slings

Key dimensions of PL350CT

Maximum capacity: 350 Lb / 160 Kg
Base legs length: 41.7 in
Base closed external width: 25.8 in
Base opened internal width: 33.1 in
Mast height: 44.0 in
Min lifting height: 26.31 in
Max lifting height: 56.57 in
Netweight: 95lb/43kg
Shipping weight: 108lb/49kg

Specifications

Input Voltage: 220-240VAC 50Hz / 110-120VAC 60Hz
Output Voltage: 24 VDC
Battery Pack: 24 VDC 5AH
Lift Control: Handset and Panel
Protection Class: IP54 (Protection against dust and splash of water)
Sound Level Under Full Load: 16db
Sound Level Under No Load: 11db
Lift Cycles Per Charge: 25 full cycles under full load
Overload Warning: by LCD
Battery Status: by LCD
Duty Cycle: 10% Duty cycle (Max 2 minute ON,18 minute OFF)
