Description

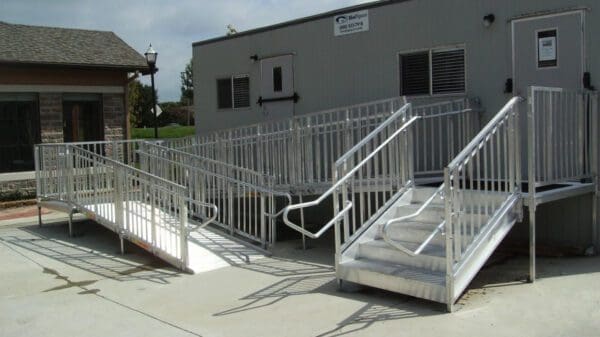

The TITAN™ Code Compliant Modular Access System is the ideal solution for temporary or permanent access. The TITAN is compliant with ADA, IBC, OSHA, and local code guidelines, providing safe access for your business, portable classroom, mobile office, and more. Combine ramps, platforms, and steps to create the ideal system for your needs. Its field-proven design can be configured to fit most applications. Powder coating options are also available.
Features:
- Extruded Tread: Welded, extruded tread is utilized in our ramps, platforms, and risers for reinforced strength and a permanent slip-resistant surface.
- High-quality Aluminum: Made of corrosion-resistant aluminum for years of maintenance-free use. Naturally non-combustible.
- Easy to Install: Universal components for quick and easy install. The system can be reconfigured, relocated, and accommodates virtually any layout or lot configuration.
- Customized Configurations: Site-specific stamped drawings available.
- Quick Ship: Standard configurations ship within 24-hours to help eliminate costly delays.
- Made in the USA and carries a three-year warranty.
Specifications:
Ramp lengths
|
2’, 3’, 4’, 5’ and 6’
|
Ramp widths
Step Heights
Step Widths
|
48” and 54” (clear width)
18”, 24”, 30”, 36”, 42”, 48”, 54”, 60”
48”
|
Platforms
|
5′ x 5′, 5′ x 7′ and 6′ x 6′ (clear width)
|
Guards
|
42″ high (picketed)
|
Handrails (std)
|
34″ high
|
Handrails (child)
|
22″ high
|
Legs
|
Fully independent and adjustable
|
